gcrank1
Member
# Posted: 17 May 2022 16:12
Reply


Toy, yer a one man CCC!
Always great posts and pics

toyota_mdt_tech
Member
# Posted: 17 May 2022 16:37 - Edited by: toyota_mdt_tech
Reply


Quoting: gcrank1
Toy, yer a one man CCC!
Always great posts and pics



OK, wondering what a CCC is, but certain its nothing bad.

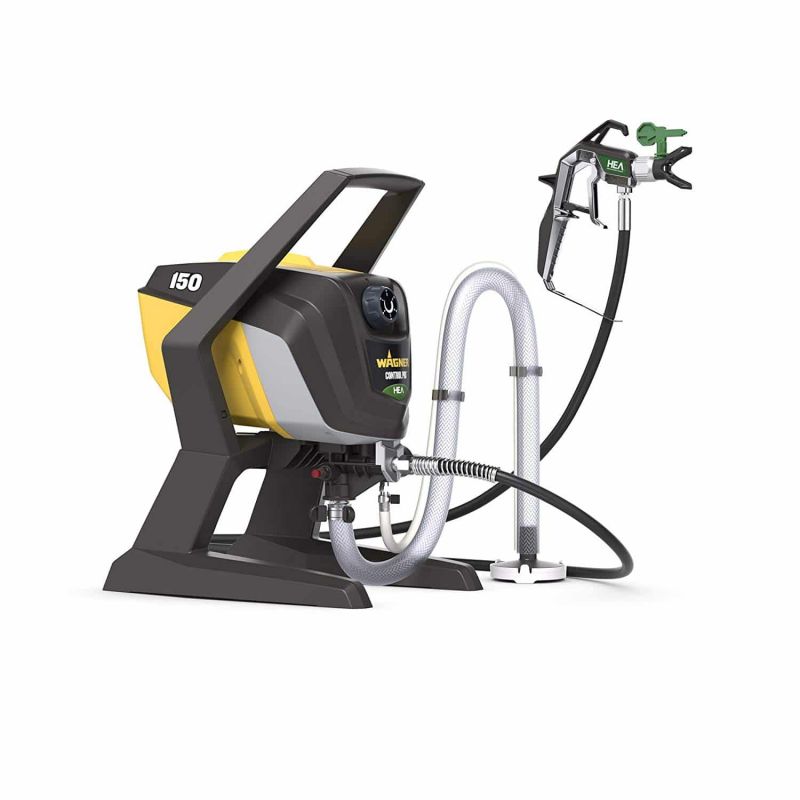

I used a Wagner Control Pro 150 sprayer, ordered from Home Depot, was planning on hand painting, so glad I got this sprayer, showed up 2 days before I departed.
Another one of those good investments. Spent about 1 hour painting after I got it going.


gcrank1
Member
# Posted: 17 May 2022 17:15
Reply


CCC=Civilian Conservation Corps, FDR era 1933-42; the CCC built much of the 'traditional' Nat Park improvements. Glorious bull work that can still be seen today.
Iirc PBS has played a documentary profiling it from time to time. Like the WWII vets, the Greatest Generation, most CCC participants are now gone.

FishHog
Member
# Posted: 17 May 2022 18:13
Reply


Nice work TMT, looks great

toyota_mdt_tech
Member
# Posted: 17 May 2022 22:16
Reply


Another logo, sticker and coffee mug design in the works, we still have the old one, its not going anywhere. But this is the black and white version, another coming, full color and the round logo will look like the crosscut end of a log, designer is working on it now.
Final
Final
Rough draft
Rough draft


toyota_mdt_tech
Member
# Posted: 18 May 2022 08:13
Reply


Quoting: gcrank1
CCC=Civilian Conservation Corps, FDR era 1933-42; the CCC built much of the 'traditional' Nat Park improvements. Glorious bull work that can still be seen today.



OK, yes, very familiar with their work, seen loads of it.
Thank you for the compliment.

BRADISH
Member
# Posted: 18 May 2022 17:12
Reply


Looking good Yota. Looks like it will be a good place to hang out with the fam!

Nobadays
Member
# Posted: 18 May 2022 18:11
Reply


True to your theme... looks great!

toyota_mdt_tech
Member
# Posted: 4 Jun 2022 13:50 - Edited by: toyota_mdt_tech
Reply


A few more of the same design with minor changes.


toyota_mdt_tech
Member
# Posted: 16 Jul 2022 16:24 - Edited by: toyota_mdt_tech
Reply

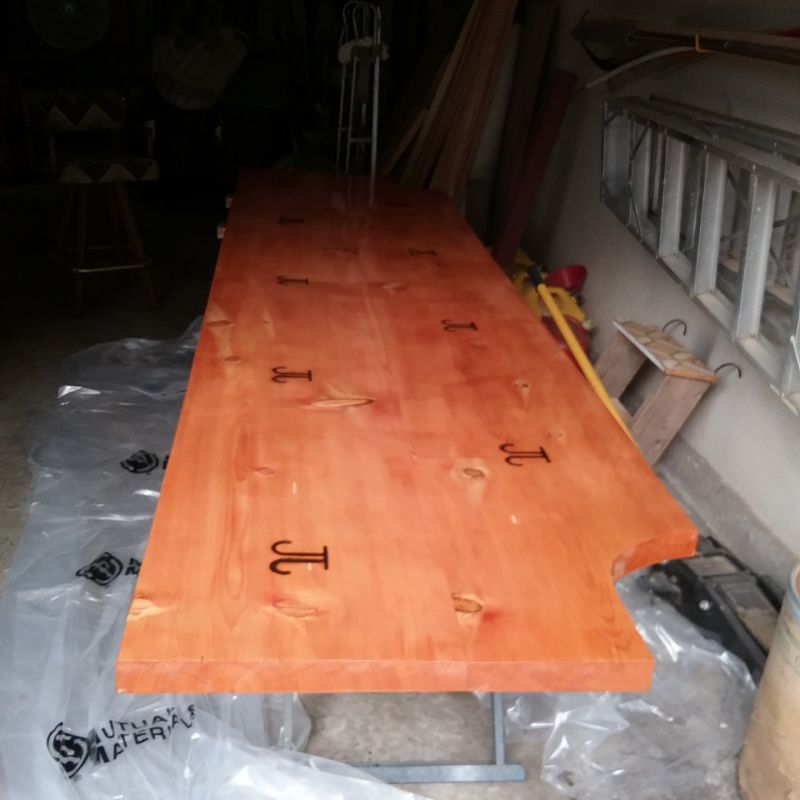

OK, took that old slabbed snag and have built a large serving table, this is to go across one end of the log shelter. Designed for cooling and serving on, while the picnic table will be used for eating. So the large space consuming items are out of the way.

The table is 11 feet long, its notched for the rear log uprights, we did a dry run last visit.

With glue and lots of biscuits, made the large table our of pieces.

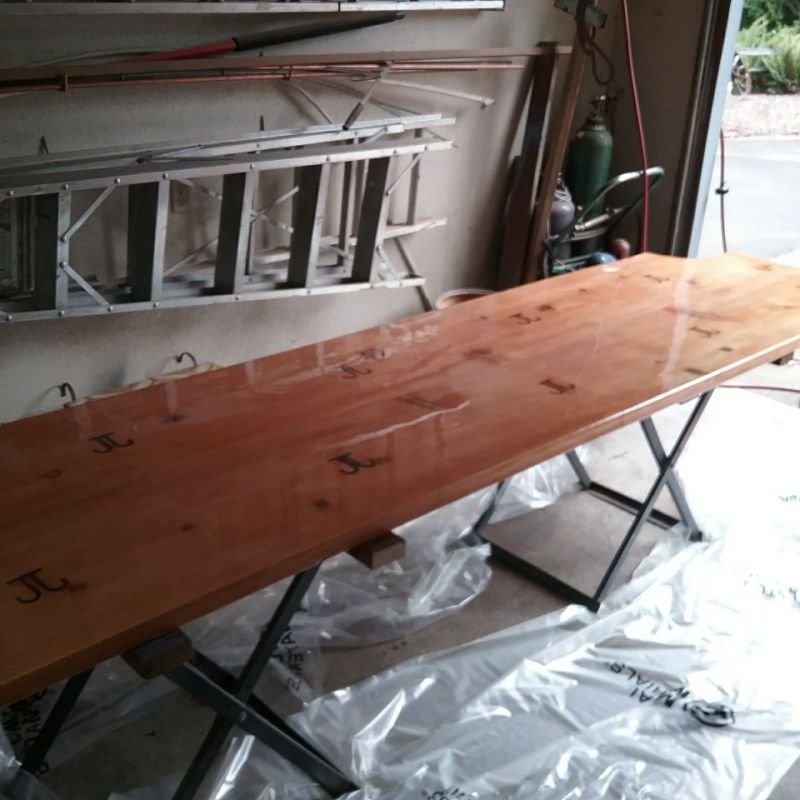

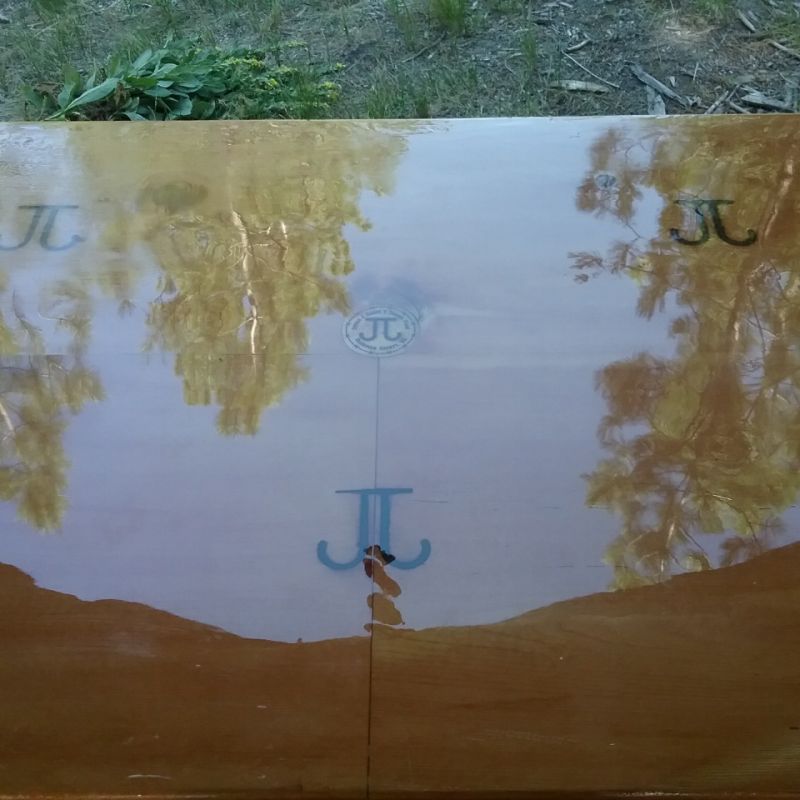

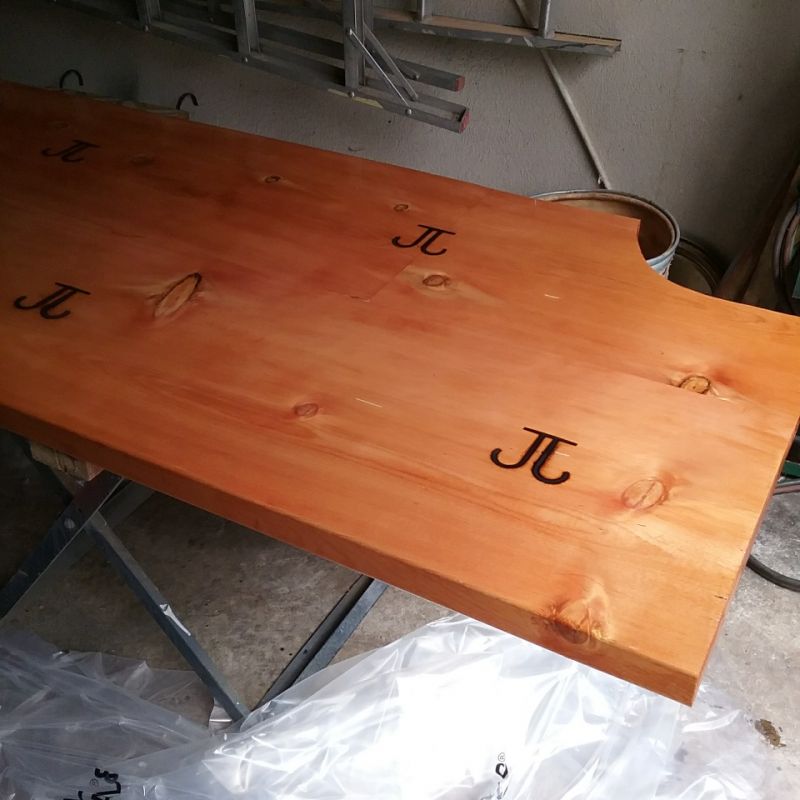

Took my branding iron and burned in the brand. I coated the top in a product called "Stone Coat", did the clear stuff, first coat down. It was spread with a 1/8" notched trowel and self leveled. I will probably have to put one more coat on it yet.

Gets installed in mid August


toyota_mdt_tech
Member
# Posted: 17 Jul 2022 21:00
Reply


Words not needed

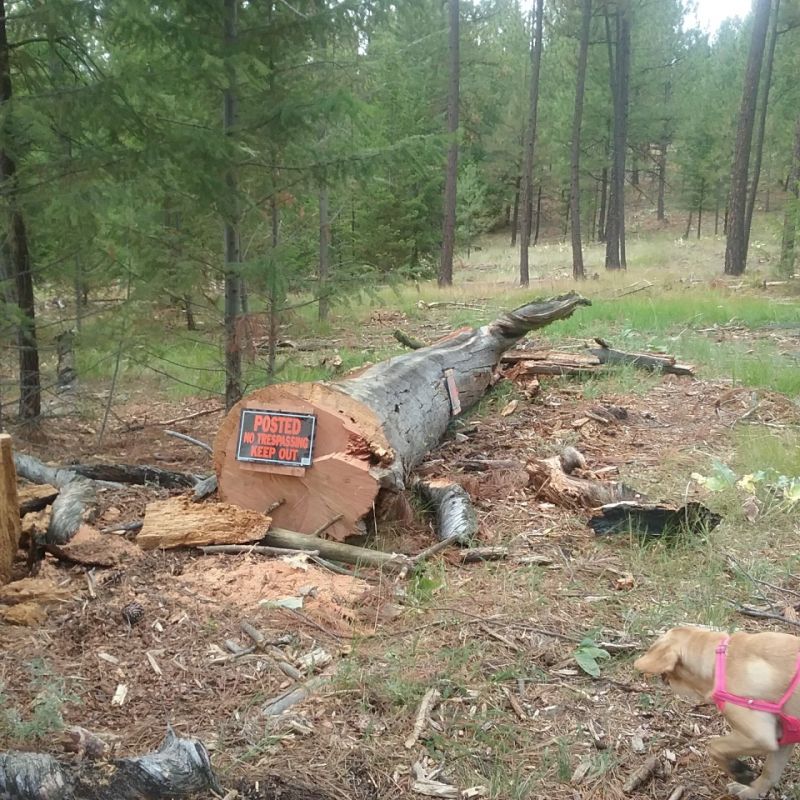

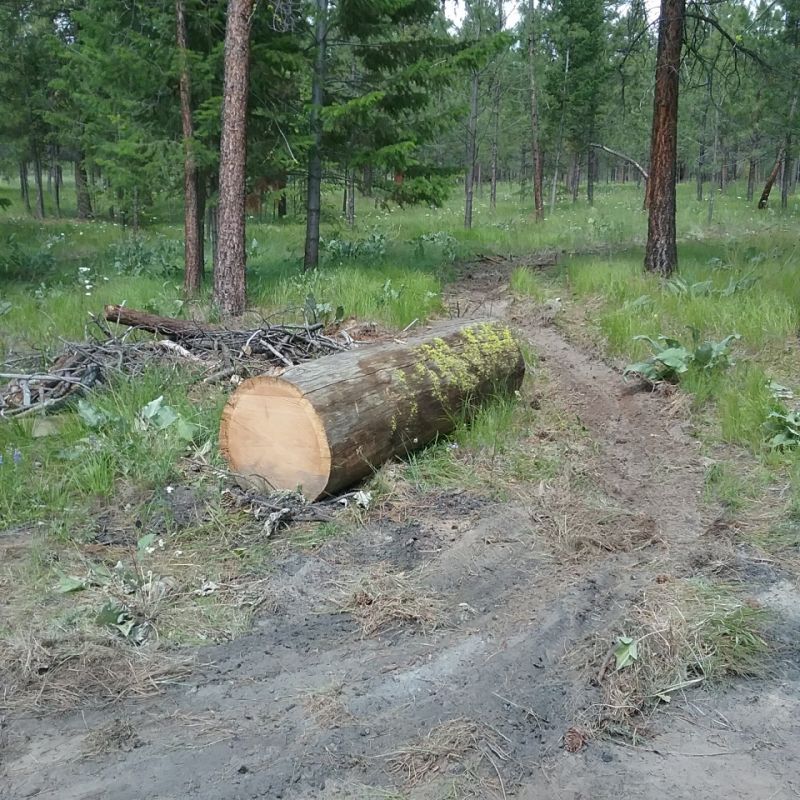

snag downed
snag downed
skidded/secured
skidded/secured

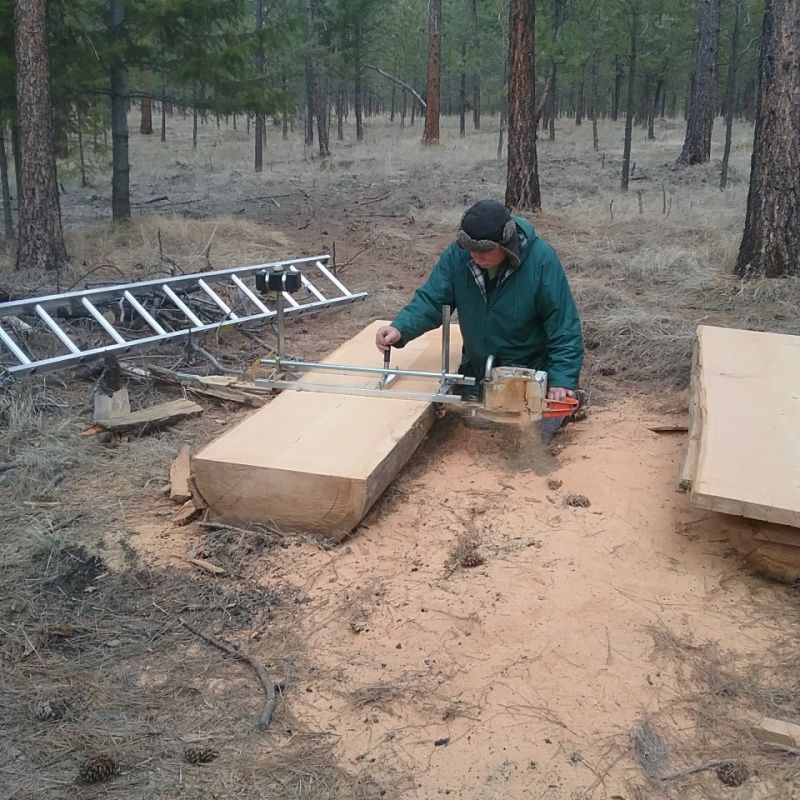

slabbed
slabbed

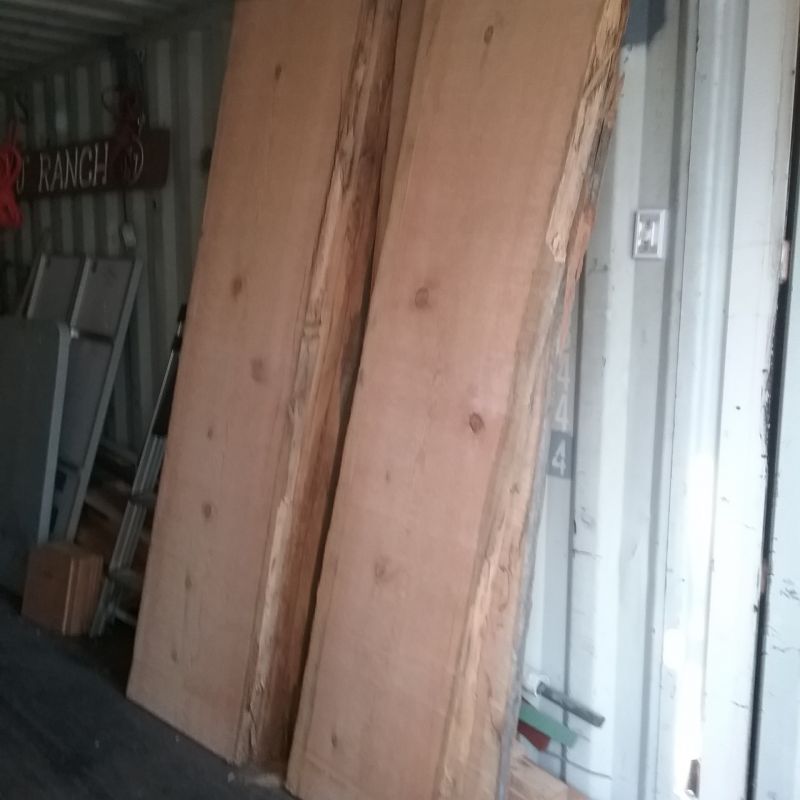

drying
drying


toyota_mdt_tech
Member
# Posted: 17 Jul 2022 21:02
Reply


Part 2

Missed the sanding pictures.

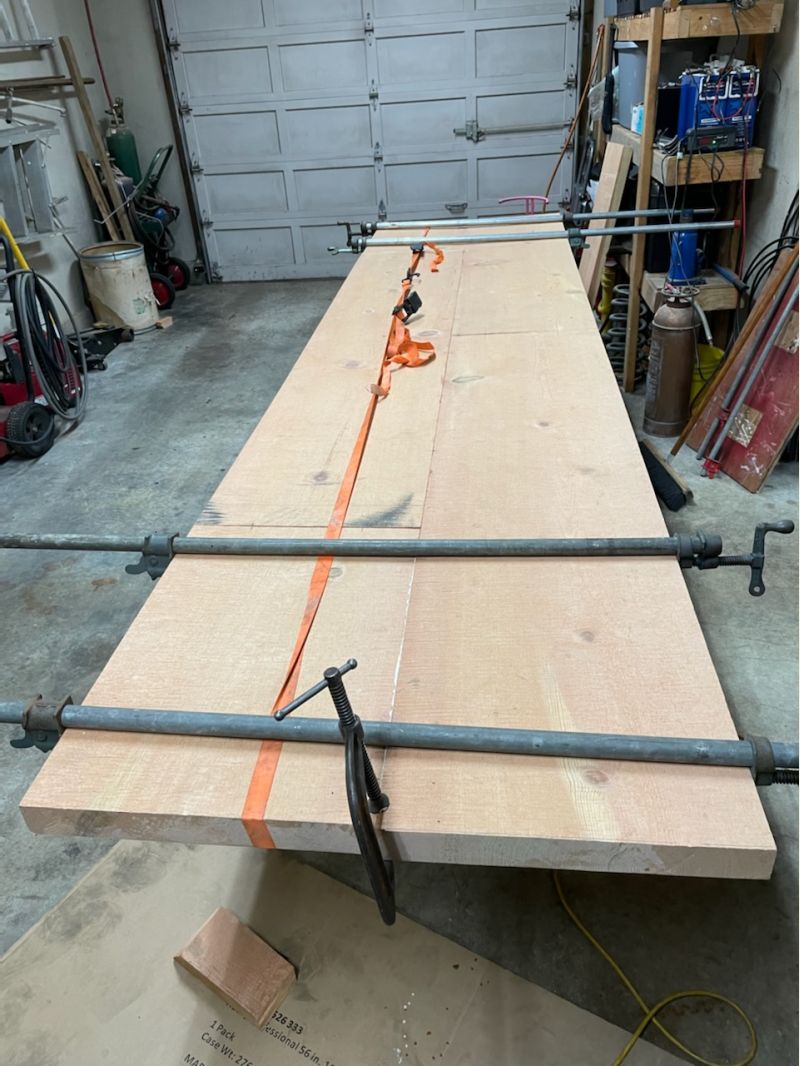

biccuits and glue
biccuits and glue

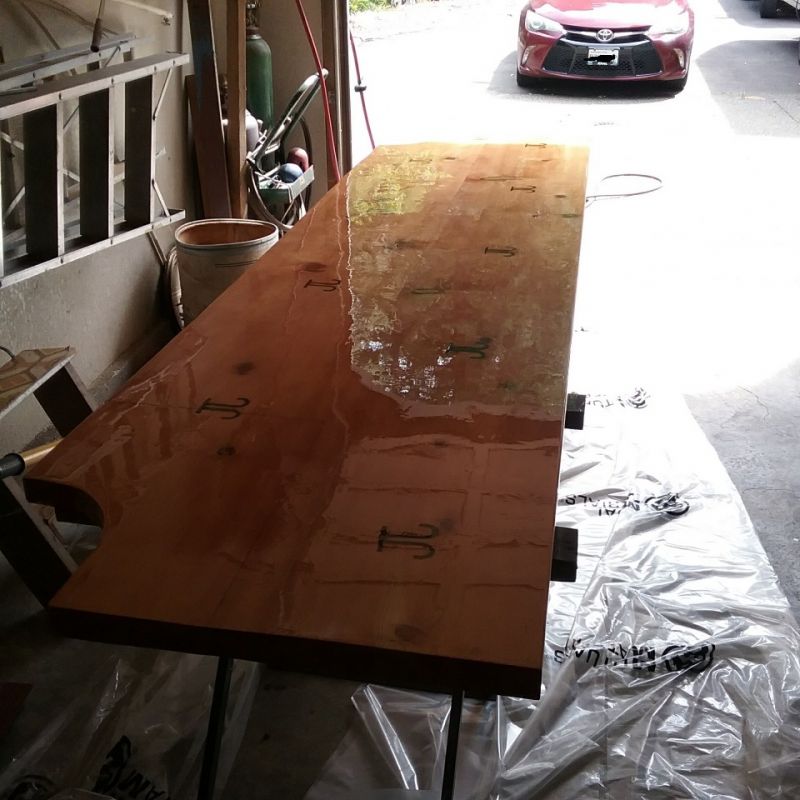

coat #1
coat #1


gcrank1
Member
# Posted: 17 Jul 2022 23:21
Reply


Wow!
That is some heavy duty logging 'just for fun'
Nice work as always.

paulz
Member
# Posted: 18 Jul 2022 09:47
Reply


Nice. What kind of wood is that? The drip feed on the mill is interesting, haven't tried that.

Nobadays
Member
# Posted: 18 Jul 2022 10:26
Reply


Nice!

I just cut 3, 10"x12"x 10' logs in half length wise to use as steps with my Echo 330T. About 2 hours each... freehand. Of course not nearly as nice of cuts as you got there but sufficient for steps. The cut marks I call, "no slip texture!"

toyota_mdt_tech
Member
# Posted: 18 Jul 2022 15:45 - Edited by: toyota_mdt_tech
Reply


Quoting: paulz
What kind of wood is that? The drip feed on the mill is interesting, haven't tried that



Paulz, its a Stihl 056AV, the drip feed has a small little valve, close it when done. Its ponderosa pine, each slab took probably 5 minutes max, it was a ripping chain, made for cutting with grain.

That is just a typical Alaskan saw mill as its generically called. Amazon has them, about $150 or so, no match for your redwoods though.

paulz
Member
# Posted: 18 Jul 2022 18:39 - Edited by: paulz
Reply


I borrowed a neighbor's Granberg, bought a ripping chain for my Husky 70cc and did some redwood. What it was great for was squaring a log so it would fit the 16" throat of my small bandsaw mill. After that, the bandsaw was faster and less kerf for the many 20+ footers I milled for my deck.

I should probably get one, handy. His didn't have the drip feed.

toyota_mdt_tech
Member
# Posted: 18 Jul 2022 18:52
Reply


Paul, the drip feed kinda of looked like an add on kit.

toyota_mdt_tech
Member
# Posted: 7 Aug 2022 21:36 - Edited by: toyota_mdt_tech
Reply


OK, headed back over Friday, be there the full following week. Have some projects, nothing big this time. Bunch of "small" as I call them.

Because of the extreme fire danger, suspect no powertools. (gas powered)

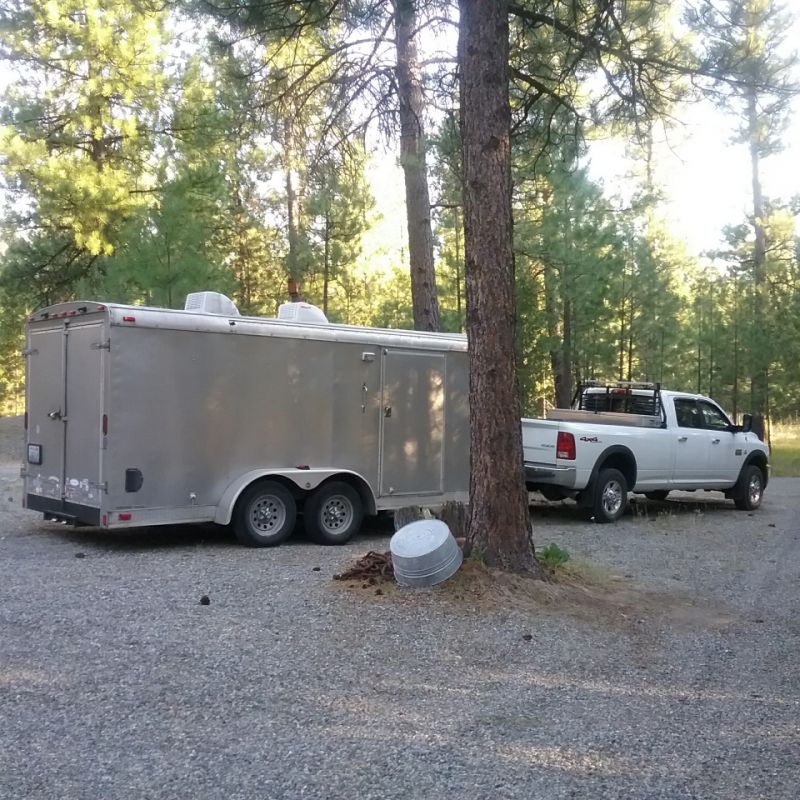

Plan is to install the rear counter, its loaded up in a good buddies trailer. I will add some rails to the shelter, give it more strength, but also a place to lean on, flat top for counter space and then across the back, the 11 foot counter. I want to add another hitching post to place traffic near cabin, stain it and the other one.

Picked up a large new boom sprayer to fit in the back of my Kawasaki Mule and battery powered. I have my ground clear stuff. The campsites and road I have been spraying by hand and its overwhelming me, I cant keep up, this should give me better odds now.

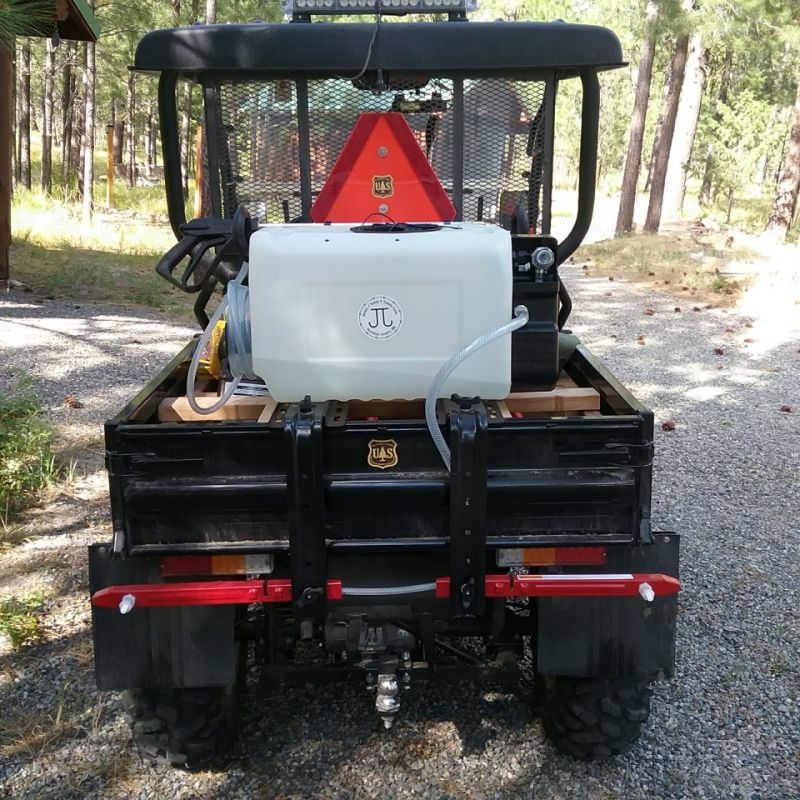

Boom Sprayer with spot wand too.

Anyway, wife, myself, Nugget my french bulldog, good buddy and another hubby wife team. Hubby wife team pulls out Sunday, wife pulls out Monday, I stay behind and my pal does and we do work.

I'll take pictures. I'm going to install that large saw too Paulz. I'll take pictures of it installed.

toyota_mdt_tech
Member
# Posted: 18 Aug 2022 15:37 - Edited by: toyota_mdt_tech
Reply

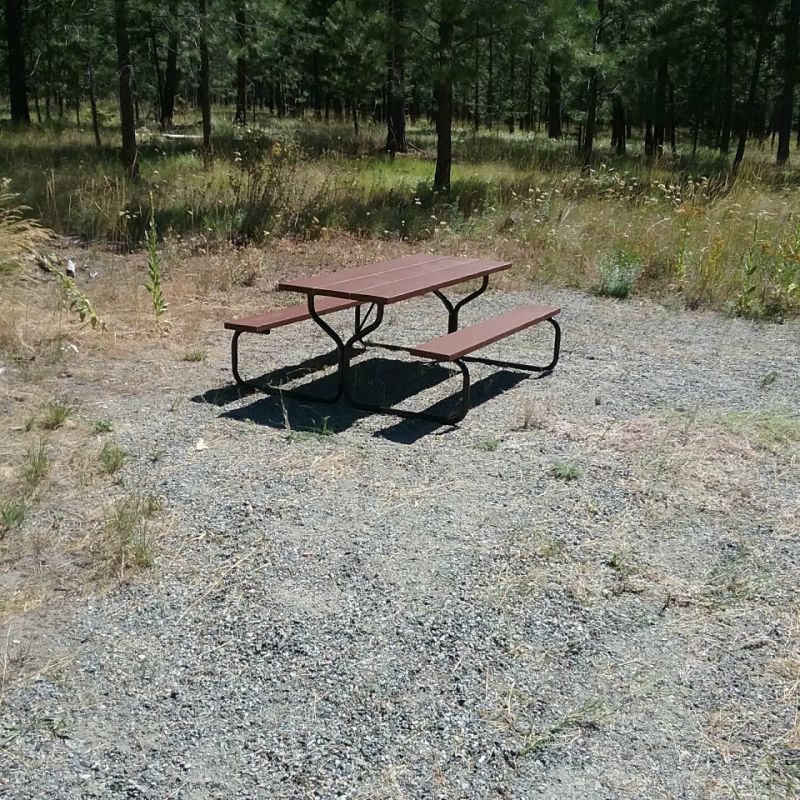

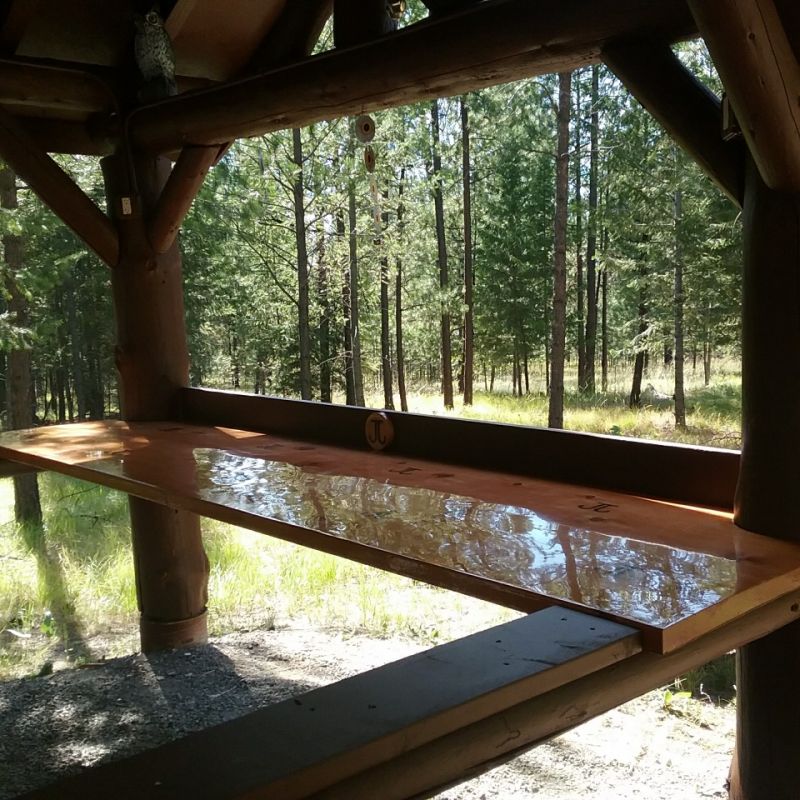

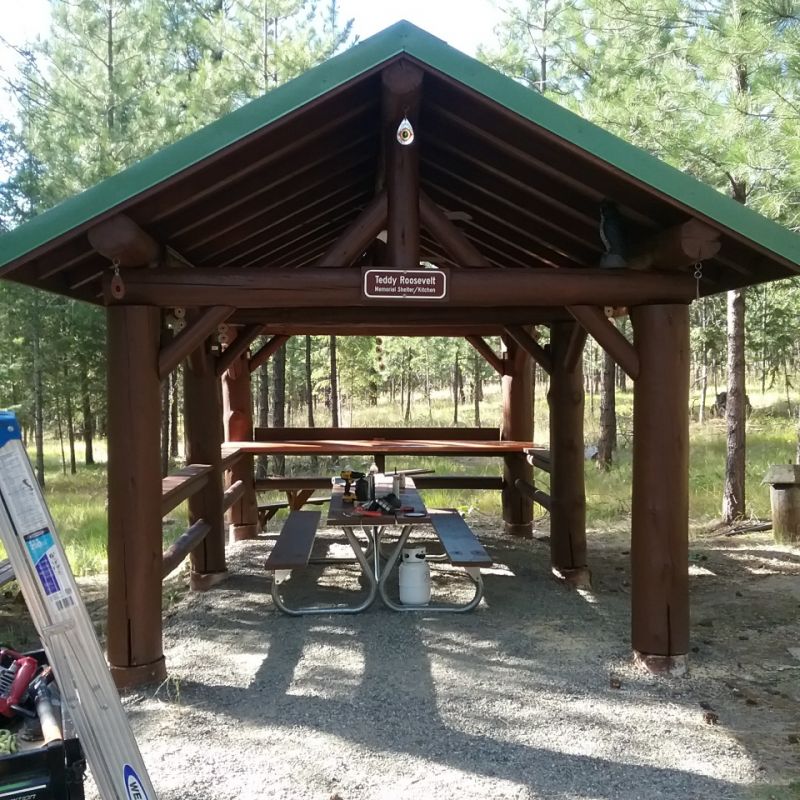

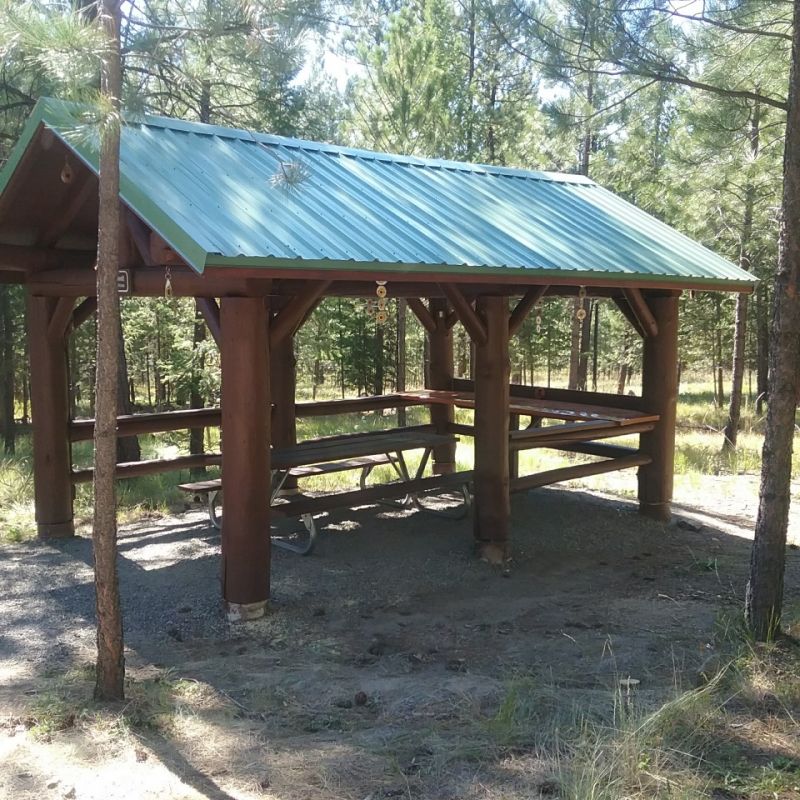

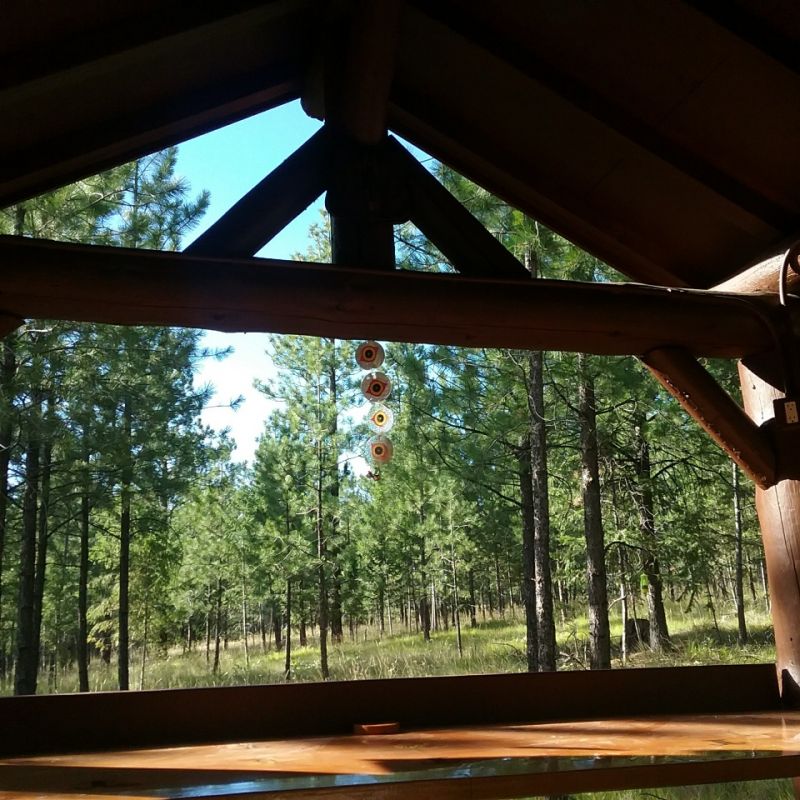

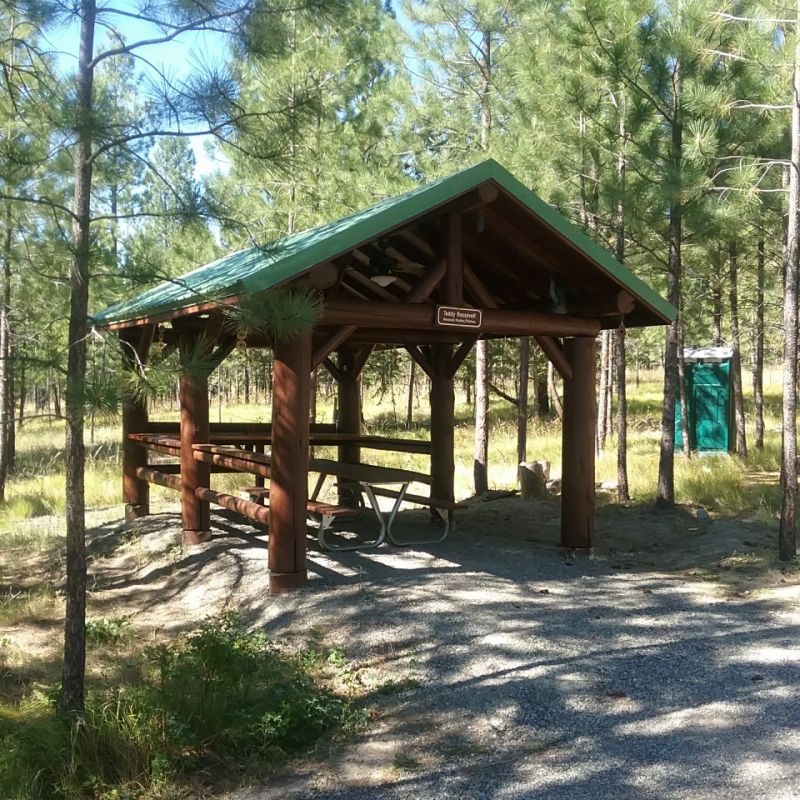

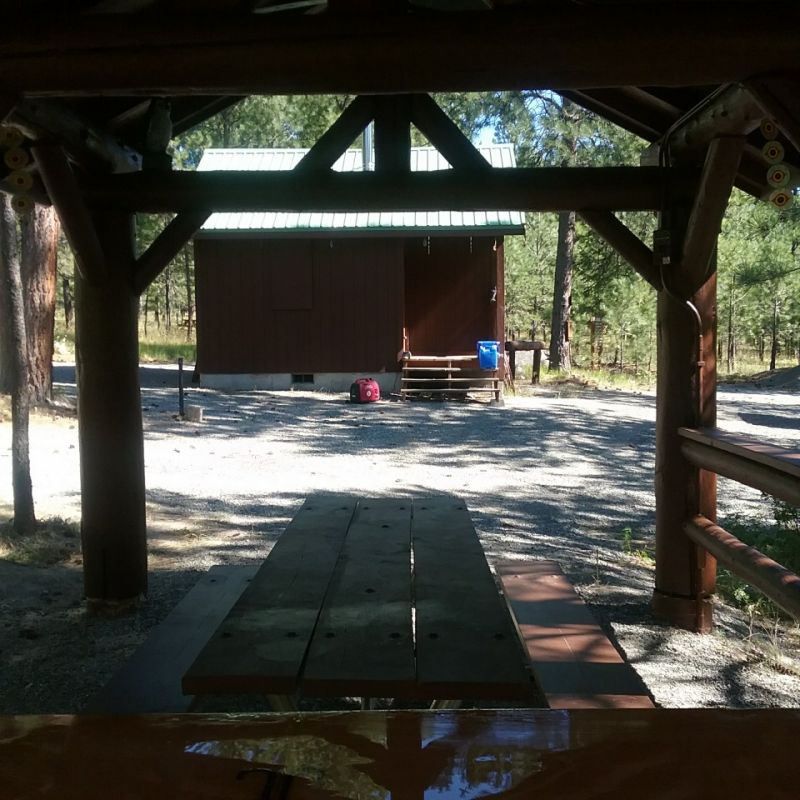

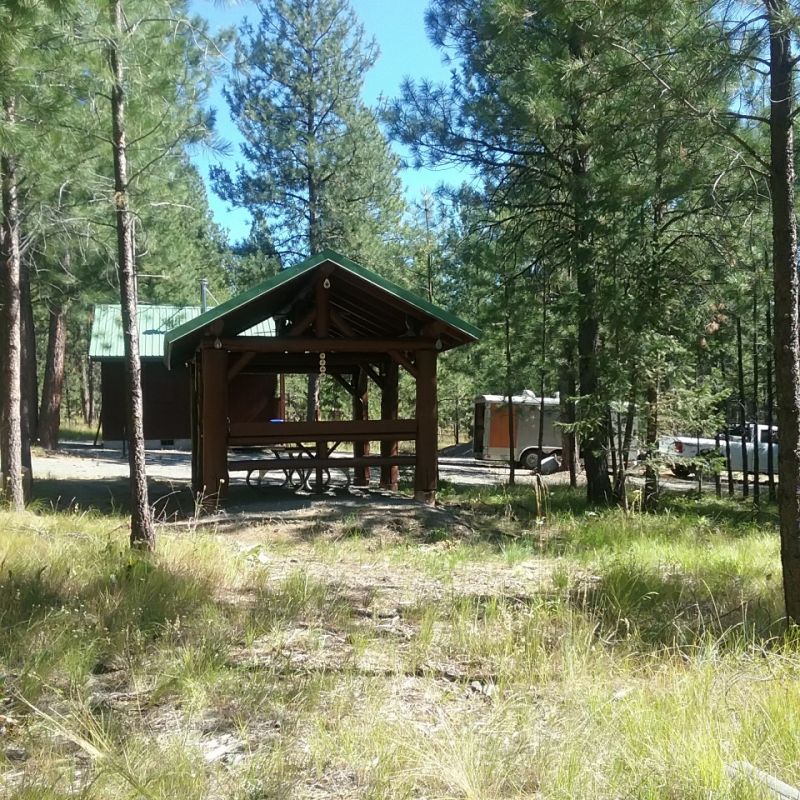

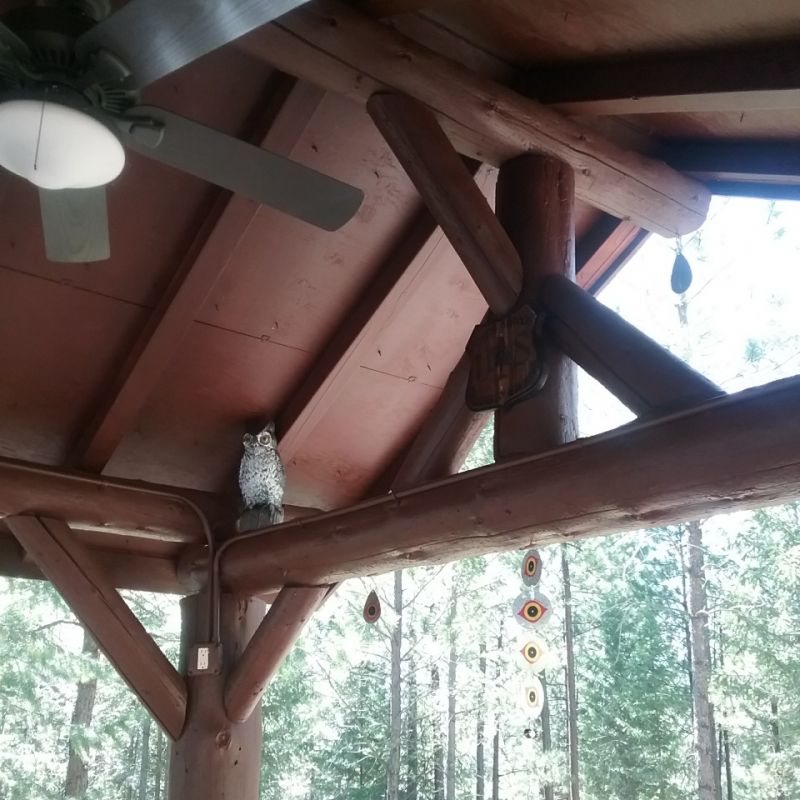

OK, week at cabin, loads of stuff done. Finished shelter, totally, rails in, rear serving counter, flat tops on side rails for drink and food surface etc. Hung USFS shield, stained hitching post, added a lower cost ADA compliant table, ie a Jack Post, was using Pilot Rock, but they went from 161 to 285, so no seal, this was the smaller tube frame too, larger tube frame was 380.

Jack post was 116, works the same, defintly not as stout, but plenty fine fo rthe cost.

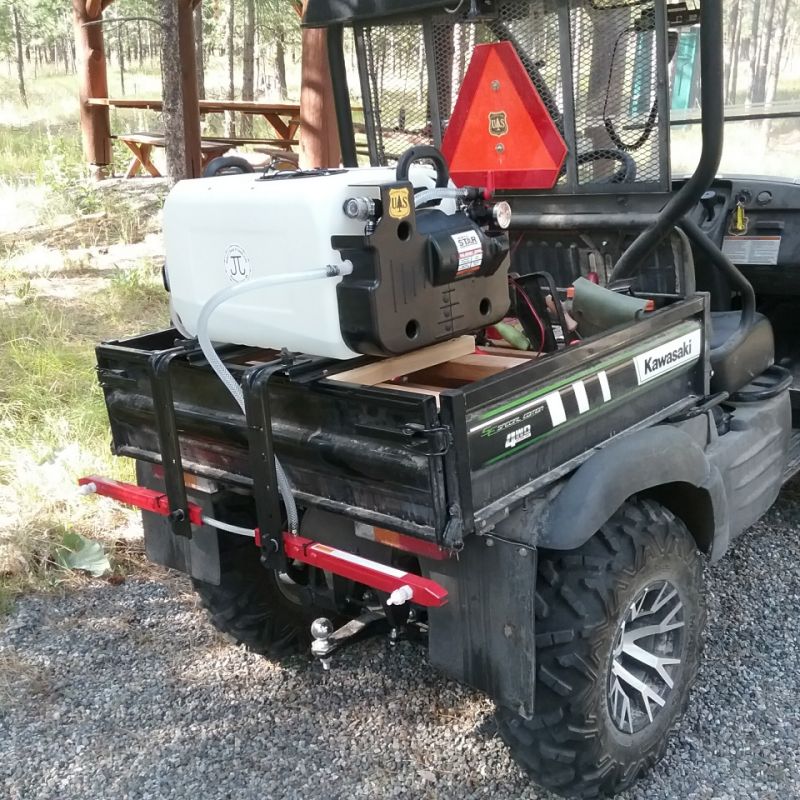

Added a 16 gallon boom sprayer with a spray want all in one unit, super slick, sprayed entire roads and campsites in about 45 minutes, did it even twice. Weeds were getting ahead of me hand spraying. This solved that issue.

Found a new item to tighten barbed fence wire from Jakes, super slick, all my fencing is tight now.

https://jakeswiretighteners.com/washington-wire-tightener-dealers/


toyota_mdt_tech
Member
# Posted: 18 Aug 2022 15:40
Reply

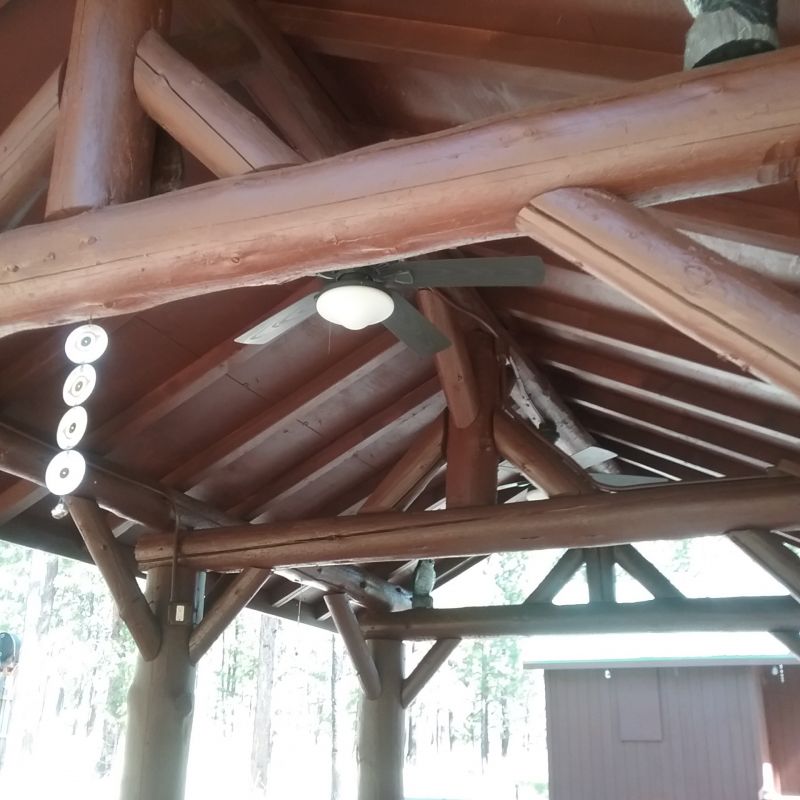

More, I will come back and edit sideways pictures


toyota_mdt_tech
Member
# Posted: 18 Aug 2022 15:41
Reply


more


toyota_mdt_tech
Member
# Posted: 18 Aug 2022 15:43 - Edited by: toyota_mdt_tech
Reply

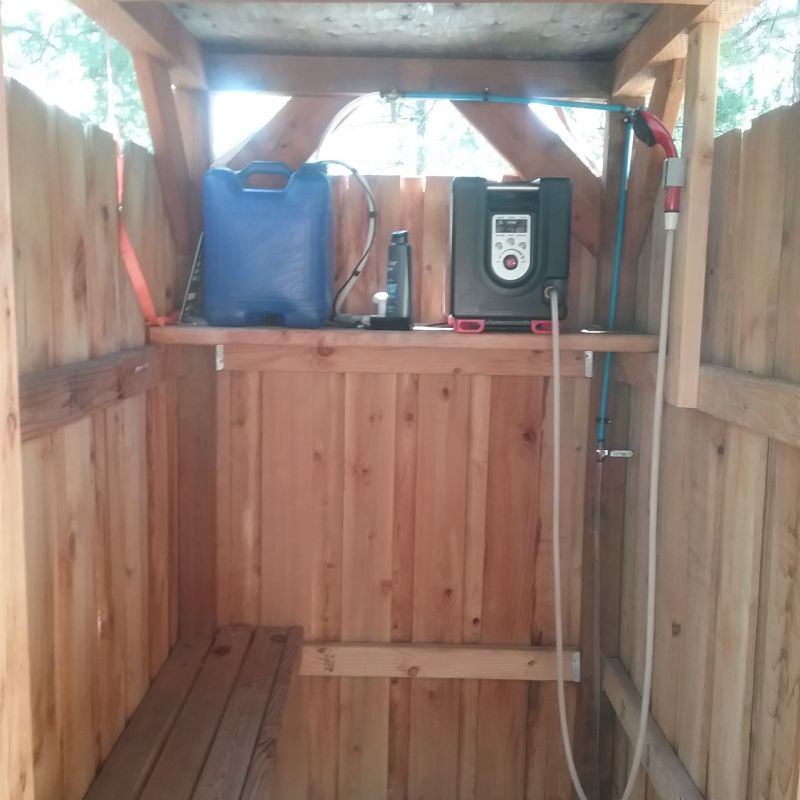

Some shower pictures.

All closed up, headed home.


paulz
Member
# Posted: 18 Aug 2022 15:55
Reply


Super nice!

Link44
Member
# Posted: 3 Oct 2022 00:07
Reply


I was snooping through your thread, beautiful work. That shelter looks super stout. I'm not going to be able to let my wife look over my shoulder or I'll be building 1 next.

I was curious what your kitchen stove is. I'm starting to layout and plan our galley style kitchen and that looks perfect, assuming its propane.

Thanks Link

toyota_mdt_tech
Member
# Posted: 3 Oct 2022 08:19
Reply


Quoting: Link44
I was curious what your kitchen stove is. I'm starting to layout and plan our galley style kitchen and that looks perfect, assuming its propane.

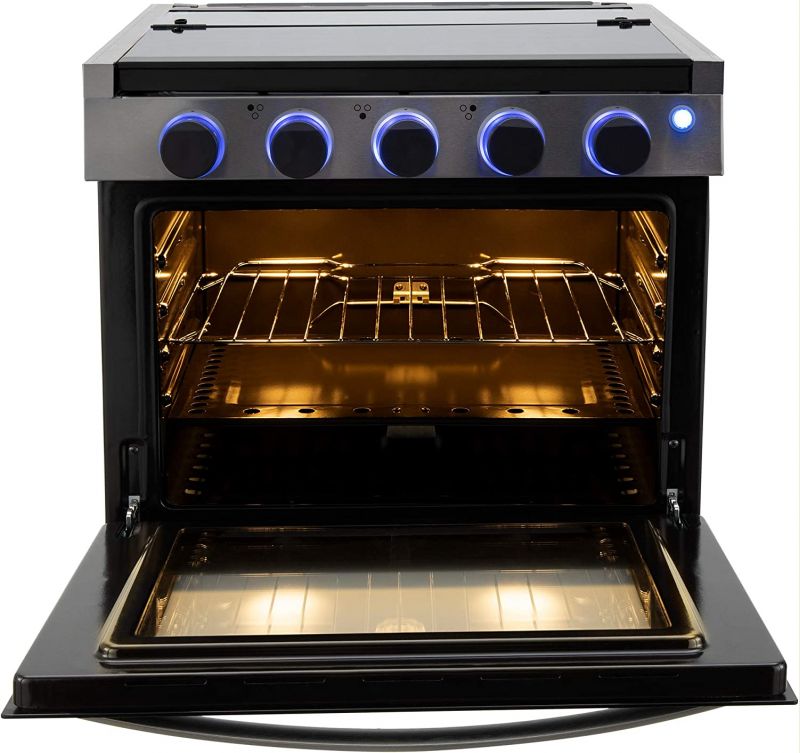

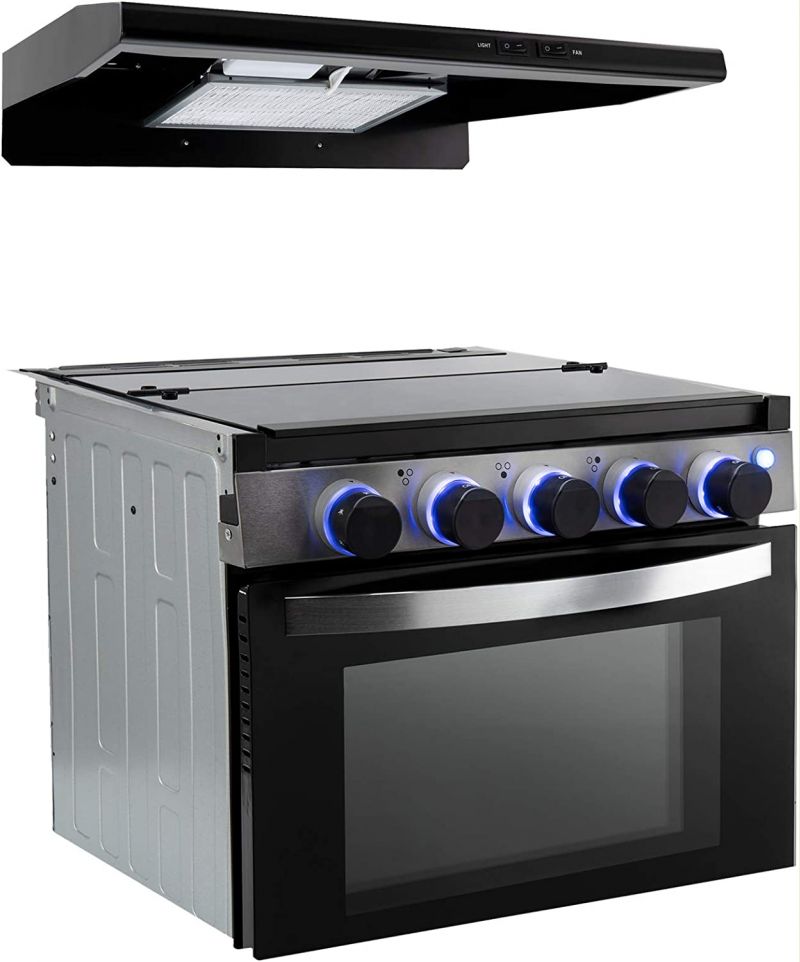

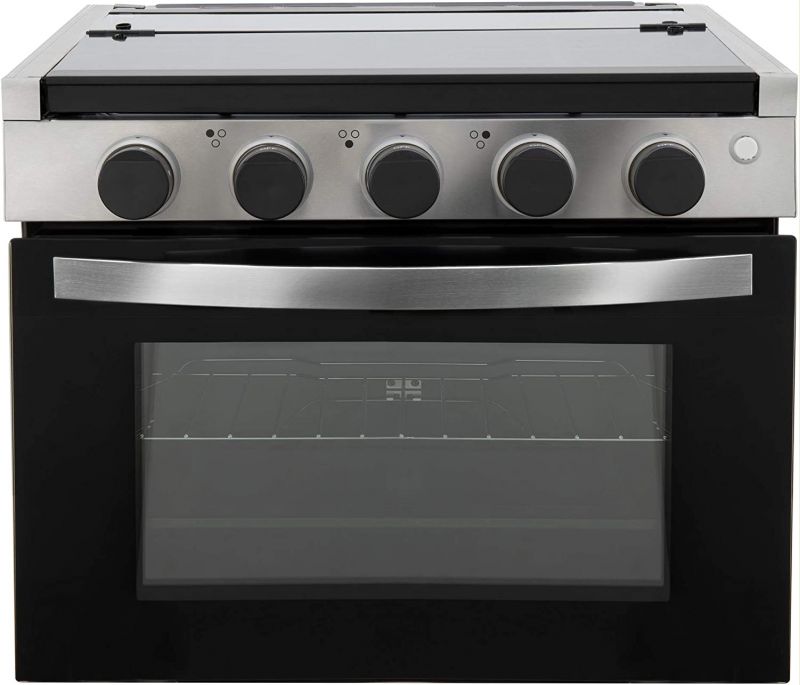

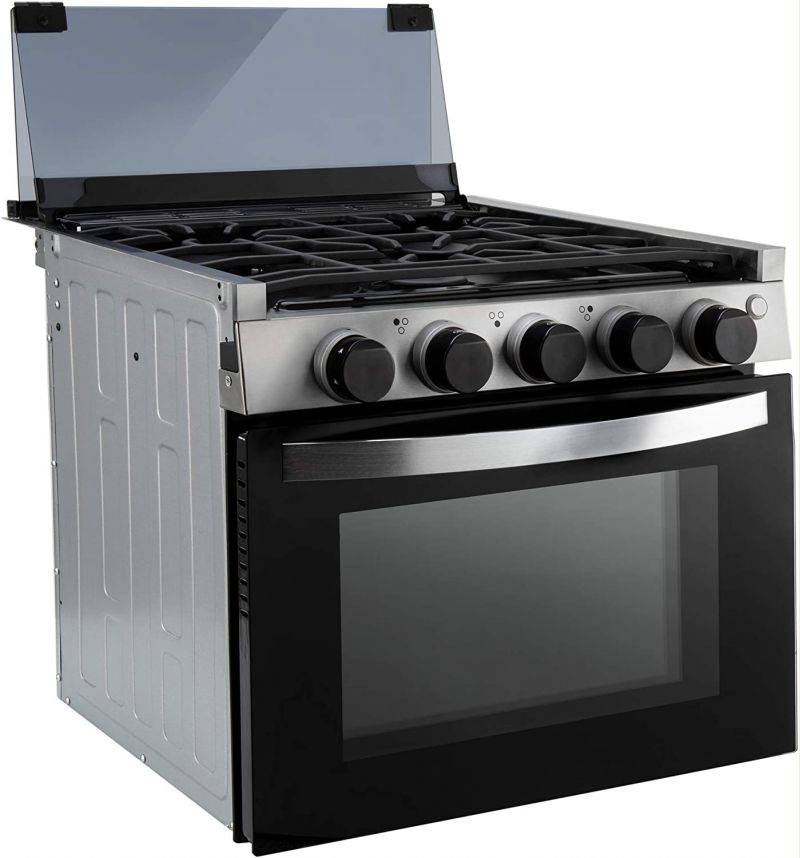

Its an RV oven, Magic Chef 4 burner. It uses a pilot lamp to light burners, but I have that turned off so manual light. Oven, same thing, but it also has a pilot off feature. Propane only.

You have to pick black, stainless look, window in oven and I like the stainless cover over the cooktop, it tidys it up and give you back some counter space and when opened, and folded back, its a nice backsplash too. You can find them used all the time. But new isnt too bad, over 600 bucks.

RV cooktop/ovens

You need to just create a space between cabinets like any oven, but they dont go to the floor, so a filler or drawer is added and the cooktop doesnt go to the wall, so the counter is notched. Cooktop hangs on counter and a few screws in front to keep it from sliding out. Mine uses 3/8" copper gas line, double flared, connection is in the top area (flips up like a car hood)

If you go this route, get the cooktop and the rest falls in place.

Link44
Member
# Posted: 3 Oct 2022 23:44
Reply


Very cool, I'll start looking around. Thanks

toyota_mdt_tech
Member
# Posted: 20 Nov 2022 00:00
Reply

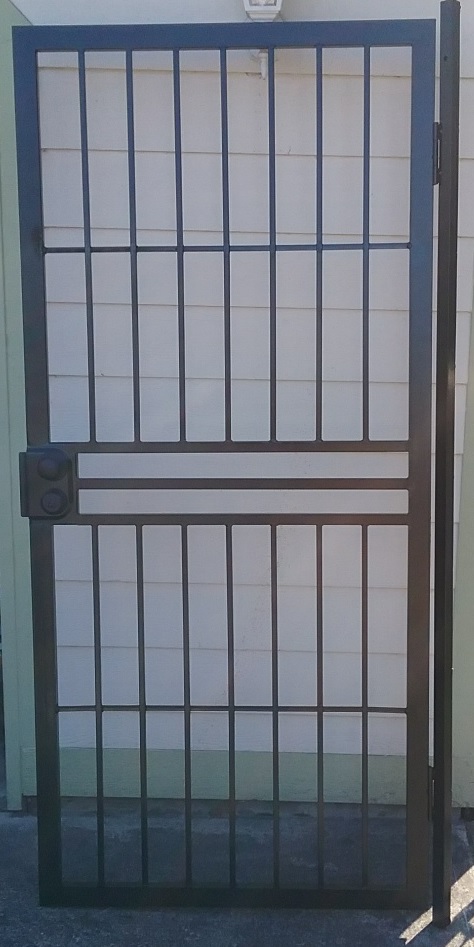

OK, in spring or maybe a quick weekend run earlier (we have 20 inches of snow now), installing a security door which also doubles as a screen door.

The bars on the upper and lower panel could be bent with some good force, so I upgraded and welded in a strap at the midway point and ties it all together. Screens screw on from the inside. The screens are 3 pieces, top, bottom and mid section.

Deadbolt is keyed on both sides with knob just a simple passage knob with no locks of any kind.

I have a magnetic device to hold it open by magnet and a bumper to protect the wall. Deadbolt is keyed the same. Picked up a Schlage full rekey kit and I just rekeyed all locks and deadbolts at my home to use 1 key. Good investment.

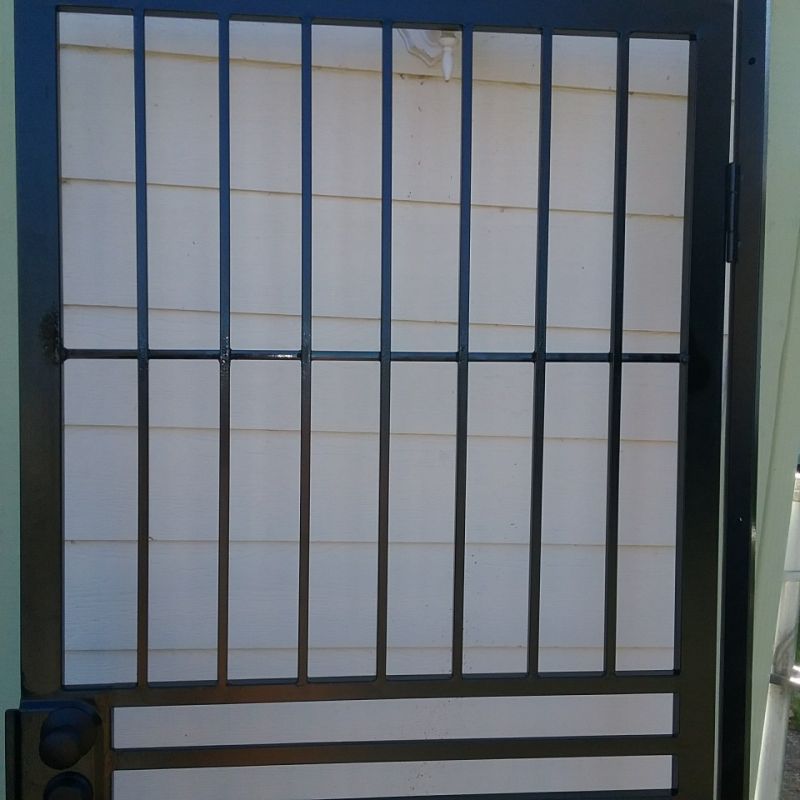

Strap added at the midway top and bottom section
Strap added at the midway top and bottom section

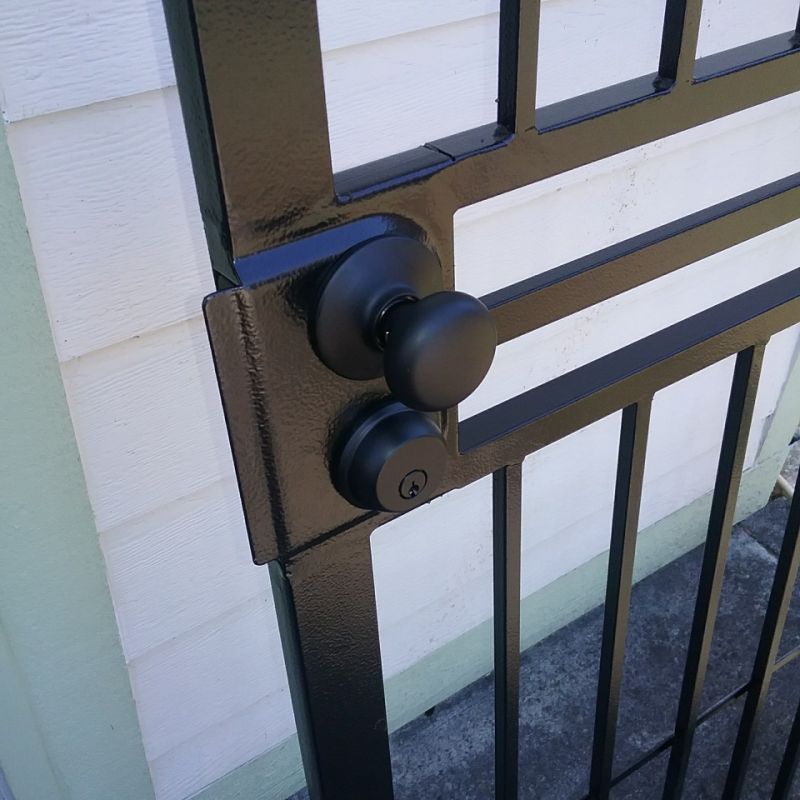

Lock and deadbolt, may swap places, needs to clear doorknob
Lock and deadbolt, may swap places, needs to clear doorknob
Full security cover
Full security cover
